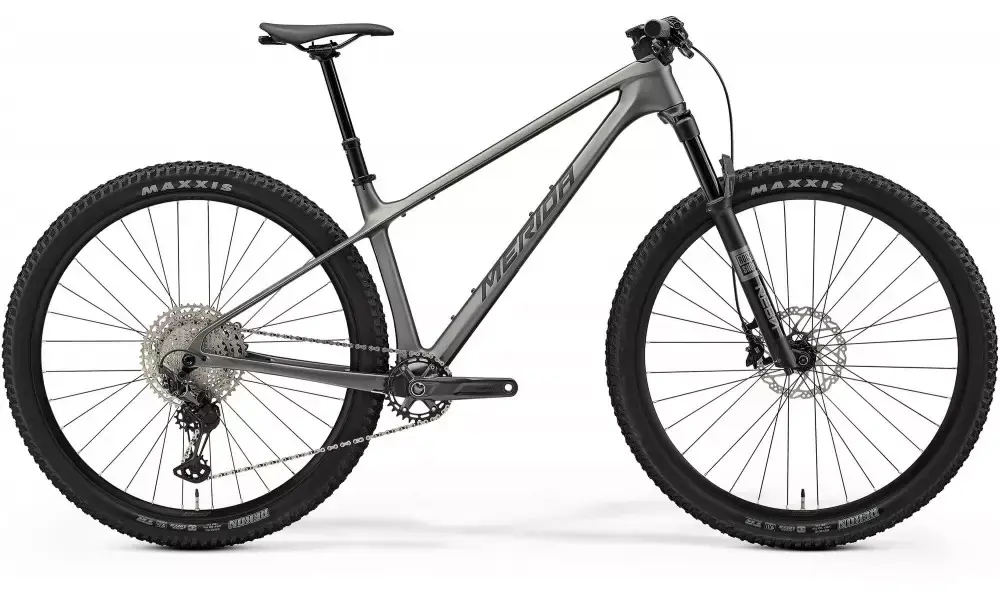

Polkupyörä Merida Big.Nine TR 5000 2026 silk gunmetal grey(black)
Bicycle technical specifications
Frame and suspension
Frame:
BIG.NINE TR CF3 III; carbon; 29×2.4″ max; 148x12mm; BSA
Fork:
Rock Shox Reba RL; Air; 120 STR; Tapered; 44 mm fork offset
Drivetrain
Drivetrain groupset:
Shimano XT
Speeds:
12
Speeds:
1×12
Rear derailleur:
Shimano XT; SGS
Front shifter:
JD-FL lever
Rear shifter:
Shimano Deore M6100
Crankset:
Shimano Deore MT512; 32T, Crank size: 170 mm for all sizes
Cassette:
Shimano Deore M6100; 10-51T; 12-speed
Chain:
KMC X12
Bottom bracket:
Shimano BB-MT-501; 24mm
Pedals:
Not included
Brake system
Front brakes:
Shimano SLX M7100; 2 piston
Rear brakes:
Shimano SLX M7100; 2 piston
Brake discs:
Front: Shimano RT54; 180mm, Rear: Shimano RT54; 160mm
Cockpit
Handlebar:
MERIDA EXPERT CC; aluminium; 760mm length; flat
Stem:
MERIDA TEAM CC III; aluminium; 31.8mm handlebar center diameter; -6° angle; incl. MERIDA SMART MOUNT, Length: 60mm
Grips:
MERIDA COMP TR
Headset:
Acros ICR MERIDA INTEGRATED neck; Upper and lower IPS sealing, Spacers: 1x10mm, 1x5mm, 1×2.5mm
Wheels
Wheel size:
29
Rims:
MERIDA EXPERT CC II; 25mm width; aluminium; Tubeless ready (tubeless tape and valves not included) , Rim tape: Stans 25mm tubeless tape installed
Front hub:
Shimano TC500-B; 110x15mm; 32H; Centerlock
Rear hub:
Shimano TC500-MS-B; 148x12mm; 32H; Centerlock, Axle: MERIDA EXPERT TR; including removable lever, 6/4mm allen key
Front tire:
Maxxis Rekon; 29×2.4″ WT; tubeless ready; 3C EXO
Rear tire:
Maxxis Rekon; 29×2.4″ WT; tubeless ready; 3C EXO
Tubes:
CST Ultralite
Spokes:
Double Butted Black stainless w/black nipples
Saddle and components
Saddle:
MERIDA COMP SL; 25% recycled material; V-mount
Seat post:
MERIDA EXPERT
Seat post clamp:
MERIDA TEAM TR SL; 30.9mm diameter; 0mm setback; S/M: 150 SPT – L/XL/XXL: 170 SPT
Accessories
Bell:
YWS-Alloy
Weight and dimensions
Weight:
11.8 kg
Maximum load (bicycle+cyclist):
120 kg
