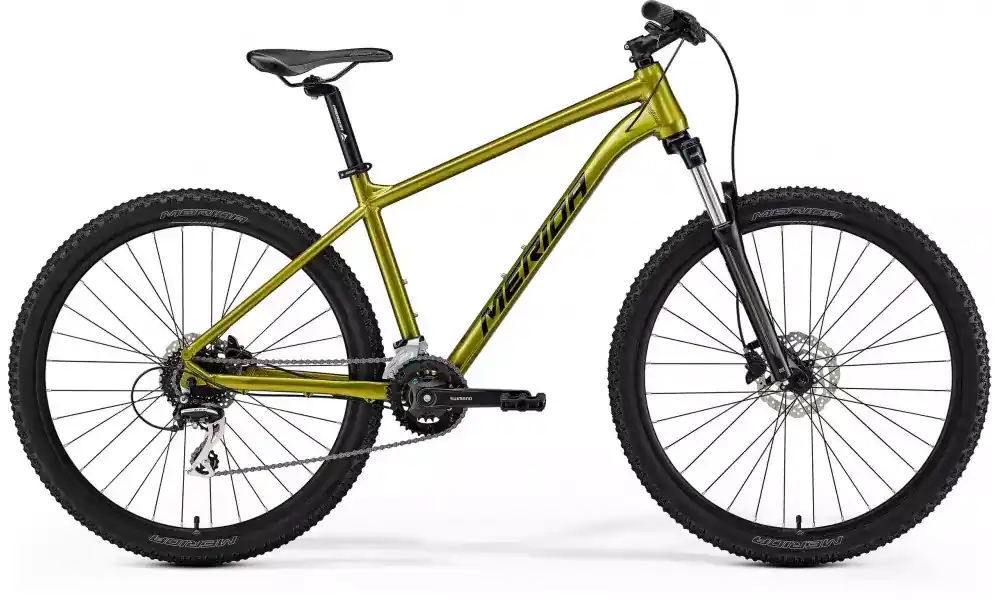

Dviratis Merida Big.Seven 20 SE IV1 fall green(black)
MERIDA. MORE BIKE.
Manufactured in Taiwan, the hub of the cycling industry, using cutting-edge frame technologies, which are developed and tested in Germany. Featuring top-quality, state-of-the-art components.
MERIDA sponsors top professional cycling teams including Road Team BAHRAIN VICTORIOUS, MTB Merida Factory Racing, MTB D2mont Merida, and others. They also support athletes such as Kristin Atzeni, Tom Wheeler, Lennard Heidenreich, Anders Backe, Elisabeth Brandau, and more.
Any remaining doubts? One of the best things about MERIDA Bikes is that the manufacturer offers a LIFETIME warranty on frames (exclusions may apply).
Bicycle technical specifications
Frame and suspension
Frame:
BIG.SEVEN TFS IV; 100 STR; MAT aluminium; 27.5×2.25″ max. WHS; 135×9 AST; BSA BBR
Fork:
SR Suntour XCT30 HLO; Coil; 100 STR; Lockout; 27.5×2.25″ max. WHS
Drivetrain
Rear derailleur:
Shimano RD-M302-8; SGS
Front derailleur:
Shimano FD-M315-TS
Shifters:
Shimano ST-EF505 / Shimano ST-EF505
Crankset:
Shimano FC-M315-2; 36-22 ATC; MAT Aluminium Crank length: 170 mm-XS/S, 175 mm-M/L
Cassette:
Sunrace CSM558AU; 11-32 ATC; 8 GER
Chain:
KMC Z8.3
Bottom bracket:
Shimano BB-UN101 73-123
Pedals:
VP VPE-891
Brake system
Brakes:
Shimano ST-EF505(2L); hydraulic brake / Shimano ST-EF505(8R); hydraulic brake
Brake discs:
Shimano RT10; 160 mm / Shimano RT10; 160 mm
Cockpit
Handlebar:
MERIDA CC; MAT aluminium; 690 WHB; 15 RHB
Stem:
MERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD / Length: 70 mm-XS/S, 90 mm-M/L,
Grips:
MERIDA EC
Headset:
MERIDA M2345
Wheels
Wheel size:
27.5″
Rims:
MERIDA CC; 17 IWR; MAT aluminium
Front hub:
Shimano TX505; 100×9 WHF; 32 SPH; Centerlock
Front tire:
MERIDA K1080; 27.5×2.2″; wire
Rear tire:
MERIDA K1080; 27.5×2.2″; wire
Spokes:
Black steel
Saddle and components
Saddle:
MERIDA Sport comfort
Seat post:
MERIDA CC; 30.9 DSP; 15 SSB; MAT aluminium
Seat post clamp:
MERIDA COMP QR
Accessories
Bell:
NH-B409AP
