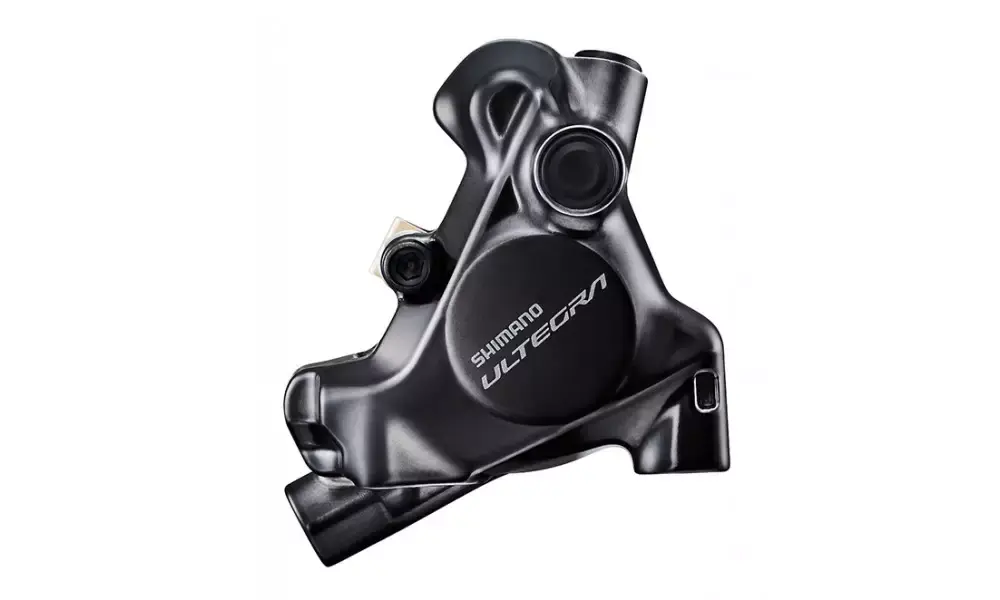

Jarrusatula taka Shimano ULTEGRA BR-R8170
The ULTEGRA R8170 disc brake caliper brings a new level of control to the road cycling world with enhanced modulation and a quicker initial braking point. Despite its smaller construction, the system is quieter than ever and easier to maintain.
Product technical specification
- 10% wider pad clearance decreases brake noise
- Maintenance-friendly bleeding process
- Weight: 146 g
- ICE TECHNOLOGIES pad compatible caliper
- Caliper fixing bolt Anti loosen method: Bolt fix pin, snap ring
- Caliper fixing bolt tool size: 4 mm
- Fixing screw spec for rear mount: 10/15/20/25/30/35 mm mount
- Flat mount
- Pad mount: Pad axle
- Pistons: 2
- Includes brake pads L03A Resin and a fixing bolt (25 mm mount thickness)
- Compatibility (the following items are not included and are to be bought separately if needed):
- STI lever: ST-R9270, ST-R8170
- Sub brake lever: BL-RX812
- OPTIONAL compatible brake pads: L04C Metal, K03S Resin
- Brake disc: RT-MT800
- Brake hose: SM-BH90-J-SSR, SM-BH90-JK-SSR
