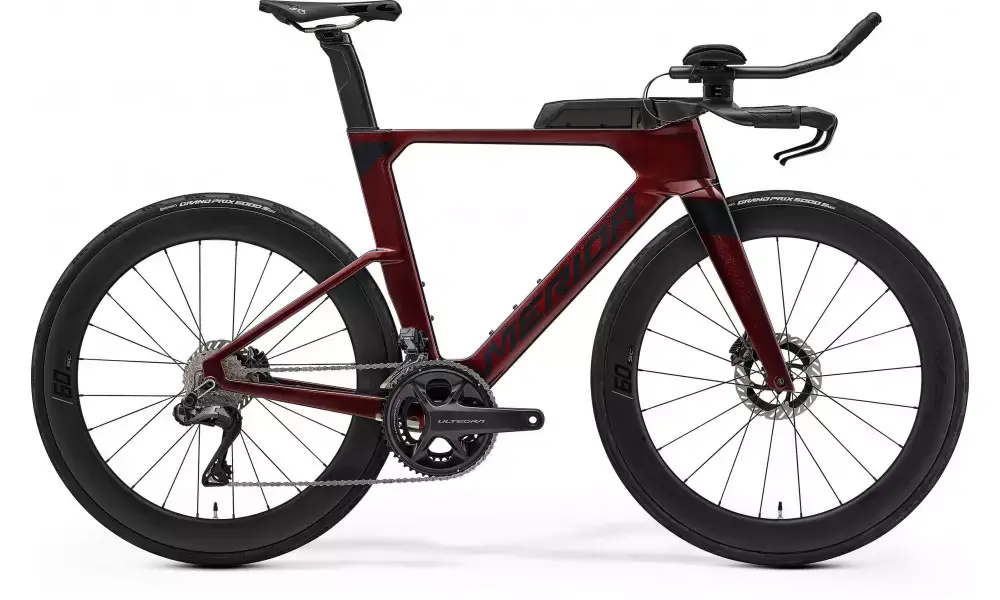

Polkupyörä Merida Time Warp TRI Limited 2026 burgundy red(black)
Bicycle technical specifications
Frame and suspension
Frame:
TIME-WARP TRI CF5 IV; carbon; 700x30C maximum wheel size; 100×12/ 142x12mm; Pressfit 86,5
Fork:
TIME-WARP TRI CF5 IV disc; carbon; 700x30C maximum wheel size
Drivetrain
Drivetrain groupset:
Shimano Ultegra Di2
Speeds:
24
Speeds:
2×12
Rear derailleur:
Shimano Ultegra Di2
Front derailleur:
Shimano Ultegra Di2
Front shifter:
Shimano ST-R9180
Rear shifter:
Shimano ST-R9180
Crankset:
Shimano Ultegra; 52-36T, Crank size: 165 mm-XS, 170 mm-S/M, 172,5 mm-L
Cassette:
Shimano Ultegra R8101; 11-30T; 12-speed
Chain:
Shimano M6100-12
Bottom bracket:
Shimano SM-BB71-41B; Pressfit 86.5
Pedals:
Not included
Brake system
Front brakes:
Shimano Dura Ace; Hydraulic disc
Rear brakes:
Shimano Dura Ace; Hydraulic disc
Brake levers:
Shimano Dura Ace
Brake discs:
Front: Shimano CL900; 160mm, Rear: Shimano CL900; 140mm
Cockpit
Handlebar:
MERIDA Metron TT; carbon
Stem:
MERIDA Metron TT; carbon; -17° angle
Handlebar tape:
MERIDA ROAD Expert
Headset:
Meida TIME WARP TT, Compressor: SL18; MERIDA Metro TT cap, Spacers: FSA V0113 Spacer kit
Wheels
Wheel size:
28
Rims:
Vision SC 60 Disc brake; 100x12mm front hub axle size; 142x12mm rear hub axle size; 23mm width; 60 HRI; Centerlock; carbon; Tubeless tape ready
Front hub:
Axle: MERIDA EXPERT SL
Rear hub:
Axle: MERIDA EXPERT SL; including removable lever; 6/4mm allen key
Front tire:
Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready
Rear tire:
Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready
Tubes:
Ultralite 80
Saddle and components
Saddle:
Prologo Zero TRI PAS Tirox
Seat post:
TIME WARP TT insert
Seat post clamp:
MERIDA TEAM TT II; Aero shape; Carbon
Accessories
Bell:
Nuvo Alloy
Weight and dimensions
Weight:
9 kg
Maximum load (bicycle+cyclist):
120 kg
kokoXS
