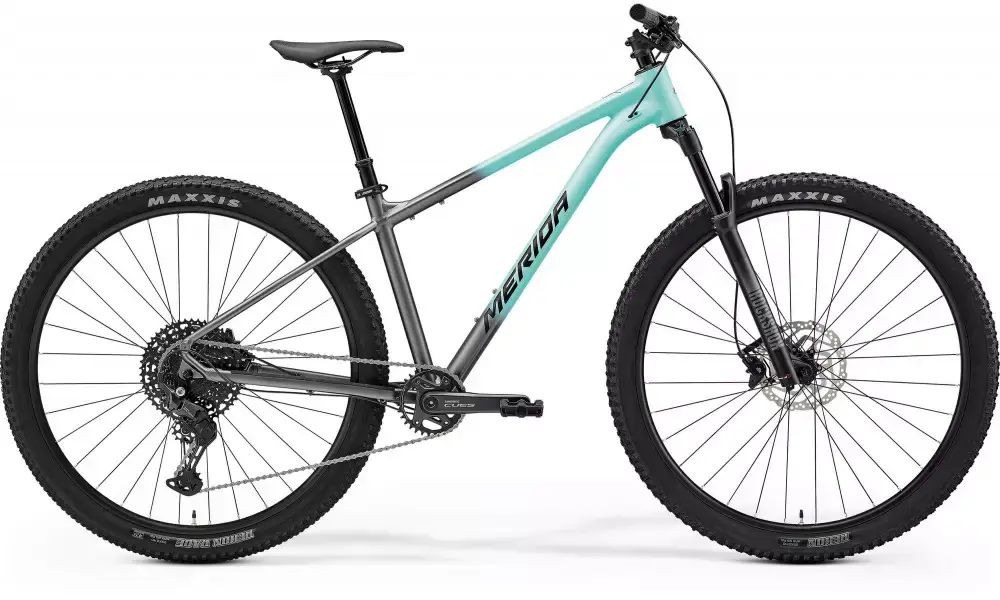

Polkupyörä Merida Big.Nine 400 2026 silk teal/gunmetal grey(black)
Bicycle technical specifications
Frame and suspension
Frame:
BIG.NINE TFS V; aluminium; 29; 135x9mm; BSA; Smooth welding
Fork:
Rock Shox Judy Gold RL; Air; 120 STR; Tapered; Lockout; 51mm fork offset
Drivetrain
Drivetrain groupset:
Shimano CUES
Speeds:
11
Speeds:
1×11
Rear derailleur:
Shimano CUES U6000; GS
Front shifter:
Shimano SL-MT500-IL
Rear shifter:
Shimano CUES U6000
Crankset:
Shimano CUES U6000; 32T, Crank size: 170mm for all sizes
Cassette:
SunRace 10-50t ZX11; CS-UX700 EA5; 10-50T; 11-speed; Linkglide
Chain:
KMC xGlide
Bottom bracket:
Shimano MT500
Pedals:
VP VPE-891
Brake system
Front brakes:
Shimano M4100; 2 piston
Rear brakes:
Shimano M4100; 2 piston
Brake discs:
Front: Shimano RT10; 180mm, Rear: Shimano RT10; 160mm
Cockpit
Handlebar:
MERIDA EXPERT CC; aluminium; 10mm rise; S: 720mm length; M/L/: 740mm length; XL/XXL: 760mm length
Stem:
MERIDA COMP CC; aluminium; 31.8mm handlebar center diameter; 7° angle, Length: S: 50mm, M-L:60 mm, XL-XXL: 70 mm
Grips:
MERIDA COMP TR
Headset:
FSA NO.55R/57, Compressor: FSA-TH-874-1, Spacers: 1x10mm,2x 5mm
Wheels
Wheel size:
29
Rims:
MERIDA COMP CC II; 25mm width; aluminium; tubeless ready
Front hub:
Shimano QC300; 100x9mm; 32H; Centerlock
Rear hub:
Shimano QC300-HM; 135x9mm; 32H; Centerlock
Front tire:
Maxxis Rekon Race; 29×2.4″
Rear tire:
Maxxis Rekon Race; 29×2.4″
Tubes:
CST Ultralite
Spokes:
Black stainless
Saddle and components
Saddle:
MERIDA COMP SL; V-mount
Seat post:
MERIDA COMP QR
Seat post clamp:
MERIDA COMP TR IV; 30.9mm diameter; 0mm setback; S: 125 SPT – M/L: 150 SPT – XL/XXL 175 SPT
Accessories
Bell:
YWS-Alloy
Weight and dimensions
Weight:
13.8 kg
Maximum load (bicycle+cyclist):
120 kg
