Kuvaus

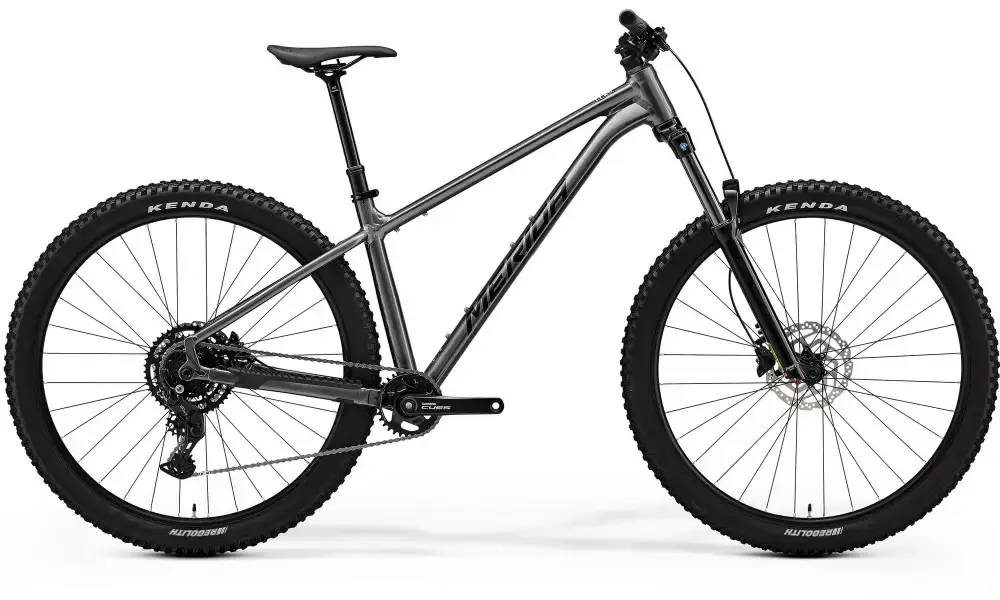

Polkupyörä Merida Big.Trail 300 2026 gunmetal grey(black)
Bicycle technical specifications
Frame and suspension
Frame:
BIG.TRAIL TFS II; aluminium; 29×2.4″ maximum wheel size; 148x12mm; BSA
Fork:
SR Suntour XCR34 2CR; Air; 140 STR; Tapered; lockout; 44mm fork offset; 29×2.4″ max maximum wheel size
Drivetrain
Drivetrain groupset:
Shimano CUES
Speeds:
9
Speeds:
1×9
Rear derailleur:
Shimano CUES U4000;
Rear shifter:
Shimano CUES U4000
Crankset:
Shimano CUES UT-400-1; 32T, Crank size: 170mm on all sizes
Cassette:
SunRace U9; CS-U980 9AZ; 11-46T
Chain:
KMC xGlide
Bottom bracket:
Shimano BB-UN101; 73mm
Pedals:
Not included
Brake system
Front brakes:
Shimano MT200; 2 piston
Rear brakes:
Shimano MT200; 2 piston
Brake discs:
Front: Shimano RT10; 180mm, Rear: Shimano RT10; 180mm
Cockpit
Handlebar:
MERIDA COMP TR II; aluminium; 780mm length; 35mm rise
Stem:
MERIDA COMP TR; aluminium; 35mm handlebar center diameter; 0° angle, Length: 40 mm
Grips:
MERIDA COMP TR
Headset:
Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing, Compressor: FSA-TH-874-1, Spacers: 2x10mm, 1x5mm
Wheels
Wheel size:
29
Rims:
MERIDA COMP CC II; 25mm width; aluminium; tubeless ready
Front hub:
Shimano TC500-B; 110x15mm; 32H; Centerlock
Rear hub:
Shimano TC500-HM-B; 148x12mm; 32H; Centerlock, Axle: MERIDA EXPERT TR; including removable lever, 6/4mm allen key
Front tire:
Kenda Regolith; 29×2.4″; wire
Rear tire:
Kenda Regolith; 29×2.4″; wire
Tubes:
CST Lite
Spokes:
Black stainless
Saddle and components
Saddle:
MERIDA COMP SL; V-mount
Seat post:
MERIDA EXPERT
Seat post clamp:
MERIDA COMP TR II; 34.9mm diameter; 0mm setback; XSHORT: 150 SPT – SHORT, MID, LONG, XLONG: 170 SPT
Accessories
Bell:
YWS-Alloy
Weight and dimensions
Weight:
14.8 kg
Maximum load (bicycle+cyclist):
120 kg
kokoXS
