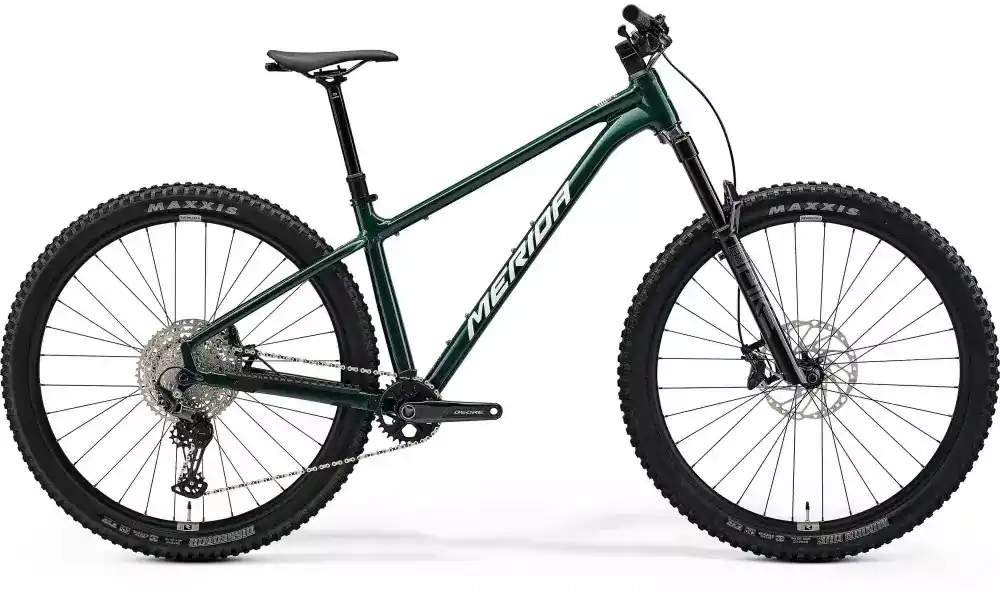

Polkupyörä Merida Big.Trail 600 2026 deep forest green(white)
Bicycle technical specifications
Frame and suspension
Frame:
BIG.TRAIL TFS II; aluminium; 29×2.4″ maximum wheel size; 148x12mm; BSA
Fork:
Rock Shox Pike; Air; 140 STR; tapered; platform; 44mm fork offset; 29×2.6 maximum wheel size
Drivetrain
Drivetrain groupset:
Shimano Deore
Speeds:
12
Speeds:
1×12
Rear derailleur:
Shimano Deore M6100; SGS
Front shifter:
Shimano SL-MT500-IL
Rear shifter:
Shimano Deore M6100
Crankset:
Shimano Deore M6120; 32T, Crank size: 165mm XSHORT, SHORT, MID and LONG; 170mm XLONG
Cassette:
Shimano Deore M6100; 10-51T; 12-speed
Chain:
KMC X12, Chainguard: MERIDA EXPERT TR ISCG05
Bottom bracket:
Shimano MT501; 24mm
Pedals:
Not included
Brake system
Front brakes:
Shimano Deore M6120; 4 piston
Rear brakes:
Shimano Deore M6120; 4 piston
Brake discs:
Front: Shimano RT64; 203mm, Rear: Shimano RT64; 203mm
Cockpit
Handlebar:
MERIDA EXPERT TR II; aluminium; 780mm length; 30mm rise
Stem:
MERIDA EXPERT eTRII; aluminium; 35mm handlebar center diameter; 0° angle, Length: 40 mm
Grips:
MERIDA COMP TR
Headset:
Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing, Spacers: 2x10mm, 1×2.5mm
Wheels
Wheel size:
29
Rims:
Reynolds 309 Enduro Comp; 30mm width; aluminium; Tubeless ready (tubeless tape installed); 29″, Rim tape: Stans 30mm tubeless tape installed
Front hub:
Shimano TC500-B; 110x15mm; 32H; Centerlock
Rear hub:
Shimano TC500-MS-B; 148x12mm; 32H; Centerlock, Axle: MERIDA EXPERT TR; including removable lever, 6/4mm allen key
Front tire:
Maxxis Minion DHF; 29×2.5″; fold; TR EXO 3C MaxxTerra
Rear tire:
Maxxis Dissector; 29×2.4″; fold; TR EXO+ 3C MaxxTerra
Tubes:
CST Ultralite
Spokes:
Double Butted Black stainless w/black nipples
Saddle and components
Saddle:
MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool
Seat post:
MERIDA EXPERT
Seat post clamp:
MERIDA EXPERT TR II; 34.9mm diameter; 0mm setback; XSHORT: 150 SPT – SHORT/MID : 170 SPT – LONG: 200 SPT – XLONG: 230 SPT
Accessories
Bell:
YWS-Alloy
Weight and dimensions
Weight:
14.5 kg
Maximum load (bicycle+cyclist):
120 kg
