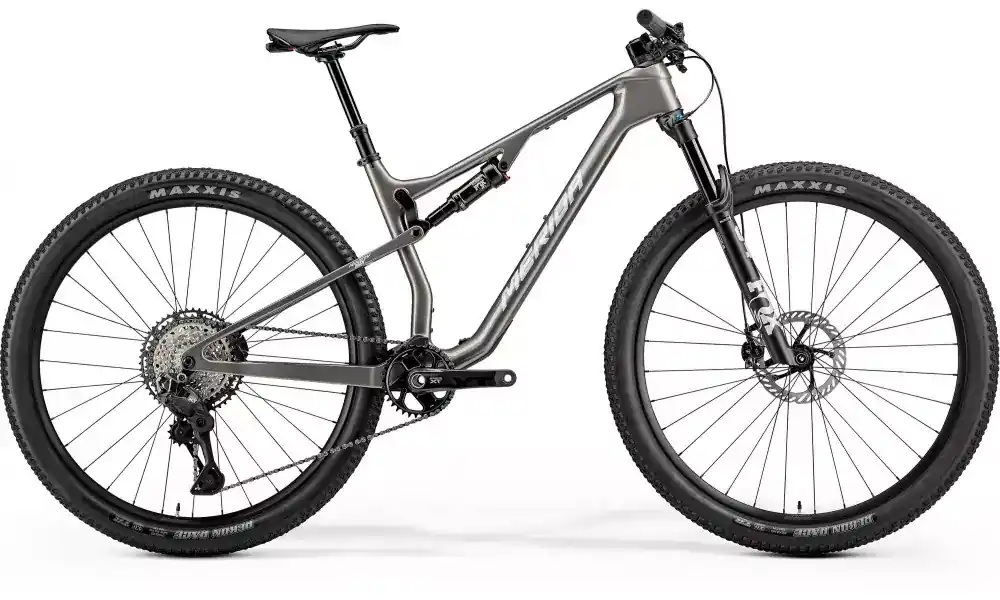

Polkupyörä Merida Ninety-Six XT 2026 warm slate grey(silver)
Bicycle technical specifications
Frame and suspension
Frame:
NINETY-SIX CF4 III; 100 STR; carbon; 29×2.35″ maximum wheel size; 148x12mm; BSA
Shock:
Fox Float SL Performance Elite; Large Volume aircan; 3 Pos PTL remote lockout; 29×2.5″ maximum wheel size
Fork:
Fox 34 Float SL Performance; Air; 120 STR; Tapered; 3 Pos Remote lockout; 44mm fork offset
Drivetrain
Drivetrain groupset:
Shimano XT Di2
Speeds:
12
Speeds:
1×12
Rear derailleur:
Shimano XT DI2 M8250; wireless; SGS
Rear shifter:
Shimano XT DI2 M8250; wireless
Crankset:
Shimano XT M8200; 34T, Crank size: 170 mm for all sizes
Cassette:
Shimano XT M8200; 10-51T; 12-speed
Chain:
KMC X12
Bottom bracket:
Shimano BB-MT-501; 24mm
Pedals:
Not included
Brake system
Front brakes:
Shimano XT M8200; 2 piston
Rear brakes:
Shimano XT M8200; 2 piston
Brake discs:
Front: Shimano RT-CL700; 180mm, Rear: Shimano RT-CL700; 160mm
Cockpit
Handlebar:
FSA SIC CF 1-piece cockpit; carbon; 760mm length, -7°; S/M/L:60 mm, XL: 80 mm
Stem:
, Length: S/M/L:60 mm, XL: 80 mm
Grips:
MERIDA COMP TR
Headset:
Acros ICR MERIDA INTEGRATED neck; Upper and lower IPS sealing, Compressor: FSA-TH-874-1, Spacers: Acros ICR to FSA SIC adapter BG401 and 5mm spacer BG402
Wheels
Wheel size:
29
Rims:
MERIDA EXPERT CC II; 25mm width; aluminium; Tubeless ready (tubeless tape and valves not included) , Rim tape: Stans 25mm tubeless tape installed
Front hub:
Shimano TC500-B; 110x15mm; 32H; Centerlock
Rear hub:
Shimano TC600-MS-B; 148x12mm; 32H; Centerlock, Axle: MERIDA EXPERT TR; including removable lever, 6/4mm allen key
Front tire:
Maxxis Rekon Race; 29×2.4″ WT; tubeless ready; 3C MaxxTerra EXO
Rear tire:
Maxxis Rekon Race; 29×2.25″; fold; TR EXO 120 TPI
Tubes:
CST Ultralite
Spokes:
Double Butted Black stainless w/black nipples
Saddle and components
Saddle:
Prologo Akero R PAS; reycled; V-mount; incl. MERIDA minitool
Seat post:
MERIDA EXPERT
Seat post clamp:
MERIDA TEAM TR SL; 30.9mm diameter; 0mm setback; 150 SPT
Accessories
Bell:
YWS-Alloy
Weight and dimensions
Weight:
11.8 kg
Maximum load (bicycle+cyclist):
120 kg
