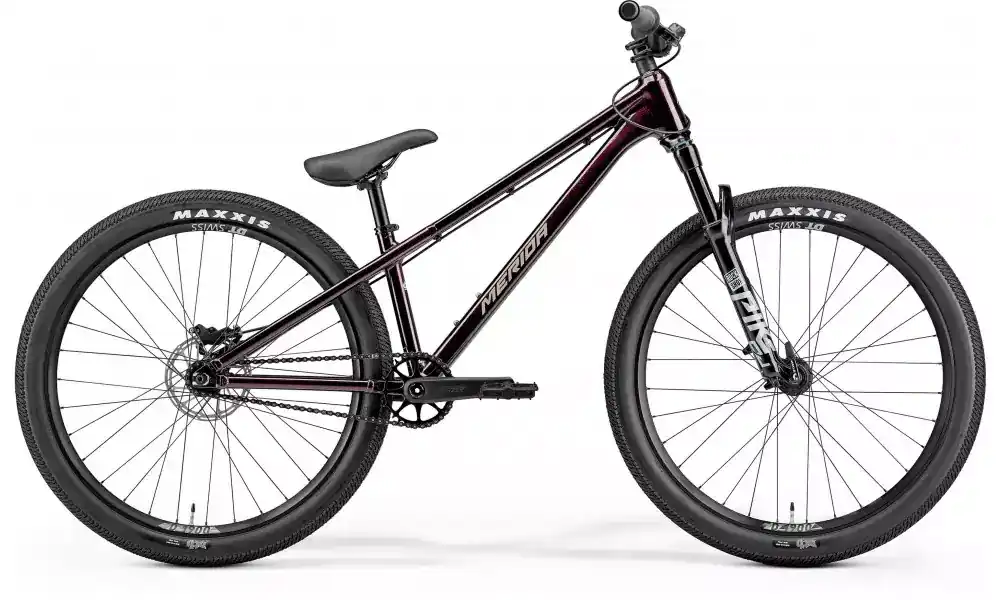

Polkupyörä Merida Dirt 700 2026 metallic black(smoked silver)
Bicycle technical specifications
Frame and suspension
Frame:
DIRT TFS; aluminium; 26; 135x10mm; BSA
Fork:
Rock Shox Pike DJ; Air; 100 STR; 15x100mm; 26×2.5″ maximum wheel size; 40mm fork offset; tapered
Drivetrain
Speeds:
1
Speeds:
Single speed
Crankset:
MERIDA Expert TR II; 32T, Crank size: 160mm
Rear sprocket:
13t singlespeed cog
Chain:
KMC Z1 wide
Bottom bracket:
Samox BSA 24mm EB2401
Pedals:
Not included
Brake system
Front brakes:
Tektro MD-M280; 2 piston
Rear brakes:
Sram DB4; 4 piston
Brake discs:
Front: Tektro TR-160-52; 160mm, Rear: Sram CenterLine; 160mm
Cockpit
Handlebar:
MERIDA COMP TR; aluminium; 780mm length; 20mm rise
Stem:
MERIDA EXPERT TR II; aluminium; 35mm handlebar center diameter; 0° angle, Length: 40mm
Grips:
MERIDA COMP DR
Headset:
FSA NO.57, Compressor: FSA-TH-874-1, Spacers: 1x10mm,2x 5mm
Wheels
Wheel size:
28
Rims:
DT Swiss D1900; 30mm width; 110x15mmmm front hub axle size; 135x10mm bolt onmm rear hub axle size; 13t; tubeless tape ready (tape installed)
Front tire:
Maxxis DTH; 26×2.3″
Rear tire:
Maxxis DTH; 26×2.3″
Tubes:
CST Ultralite
Saddle and components
Saddle:
MERIDA COMP DR
Seat post:
MERIDA EXPERT
Seat post clamp:
MERIDA COMP DR; aluminium; 27.2mm diameter; 0mm setback; 250mm length
Accessories
Bell:
YWS-Alloy
Weight and dimensions
Weight:
11 kg
Maximum load (bicycle+cyclist):
120 kg
